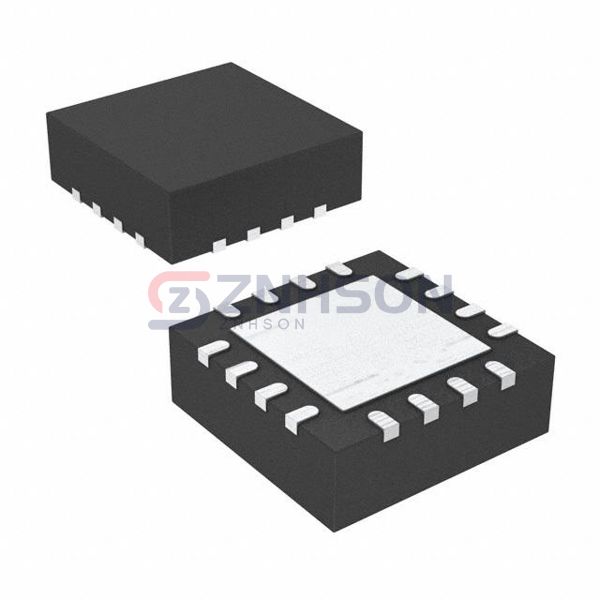

DG411HSDN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH QUAD SPST 16-QFN 4X4
$4.85
Available to order
Reference Price (USD)
2,500+
$1.99500
5,000+
$1.92000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DG411HSDN-T1-E4 - Vishay Siliconix's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The DG411HSDN-T1-E4 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 35Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 105ns, 80ns
- -3db Bandwidth: -
- Charge Injection: 22pC
- Channel Capacitance (CS(off), CD(off)): 12pF, 12pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -88dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad
- Supplier Device Package: 16-QFN (4x4)
