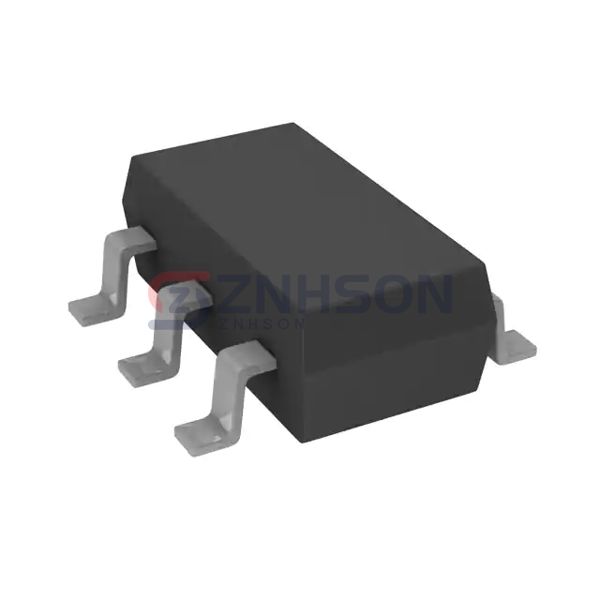

DMC2053UVTQ-13
Diodes Incorporated
Diodes Incorporated
MOSFET 8V~24V TSOT26
$0.17
Available to order
Reference Price (USD)
1+
$0.16725
500+
$0.1655775
1000+
$0.163905
1500+
$0.1622325
2000+
$0.16056
2500+
$0.1588875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the DMC2053UVTQ-13, a premium Transistors - FETs, MOSFETs - Arrays product from Diodes Incorporated. This Discrete Semiconductor Products component is designed for optimal power handling and efficiency, featuring advanced technology to reduce switching losses. Suitable for applications such as DC-DC converters, audio amplifiers, and robotics, the DMC2053UVTQ-13 delivers consistent and reliable operation. Diodes Incorporated's dedication to excellence ensures this MOSFET array meets the highest industry standards.
Specifications
- Product Status: Active
- FET Type: N and P-Channel Complementary
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 4.6A (Ta), 3.2A (Ta)
- Rds On (Max) @ Id, Vgs: 35mOhm @ 5A, 4.5V, 74mOhm @ 3.5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.6nC @ 4.5V, 5.9nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 369pF @ 10V, 440pF @ 10V
- Power - Max: 700mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: TSOT-26
