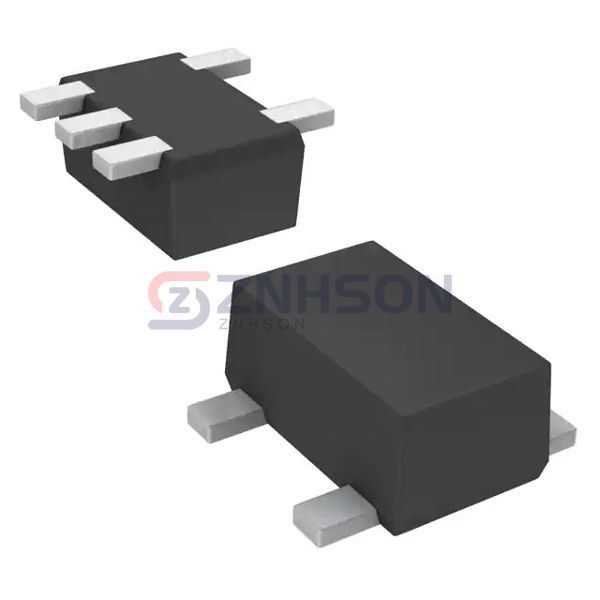

DMG563020R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SMINI5
$0.00
Available to order
Reference Price (USD)
3,000+
$0.13167
6,000+
$0.12369
15,000+
$0.11571
30,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMG563020R by Panasonic Electronic Components is a top-tier pre-biased BJT array designed to streamline your circuit designs. Featuring multiple transistors with pre-adjusted bias, this product reduces external component requirements and improves system efficiency. Its excellent thermal characteristics and low leakage current make it suitable for precision applications like sensor interfaces and battery management systems. Panasonic Electronic Components's DMG563020R is trusted by engineers worldwide for its durability and performance in harsh environments. From consumer gadgets to industrial automation, this transistor array delivers consistent results every time.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 22kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: 6-SMD (5 Leads), Flat Lead
- Supplier Device Package: SMini5-F3-B
