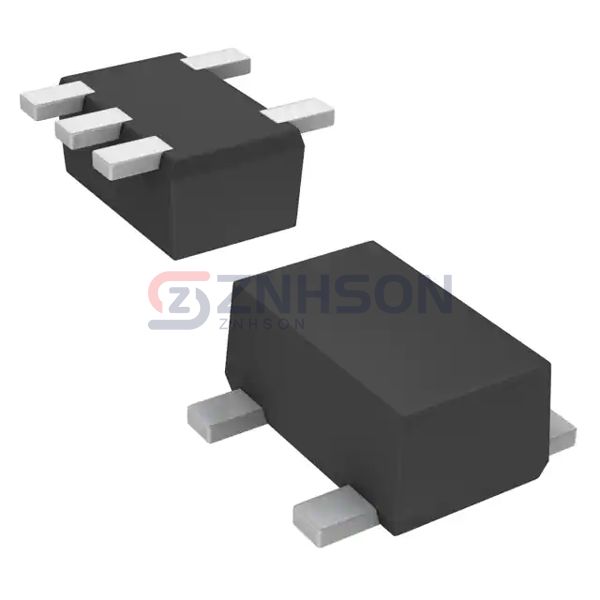

UP0121MG0L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS DUAL NPN SSMINI5
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UP0121MG0L from Panasonic Electronic Components is a high-performance Bipolar Junction Transistor (BJT) Array designed for precision applications. This pre-biased transistor array integrates multiple BJTs in a compact package, offering excellent thermal stability and consistent performance. Ideal for amplification and switching circuits, the UP0121MG0L ensures low noise and high gain, making it a reliable choice for industrial and consumer electronics. Common applications include motor control, LED drivers, and audio amplifiers. With robust construction and advanced manufacturing techniques, Panasonic Electronic Components's UP0121MG0L delivers unmatched reliability in demanding environments.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 2.2kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F3
