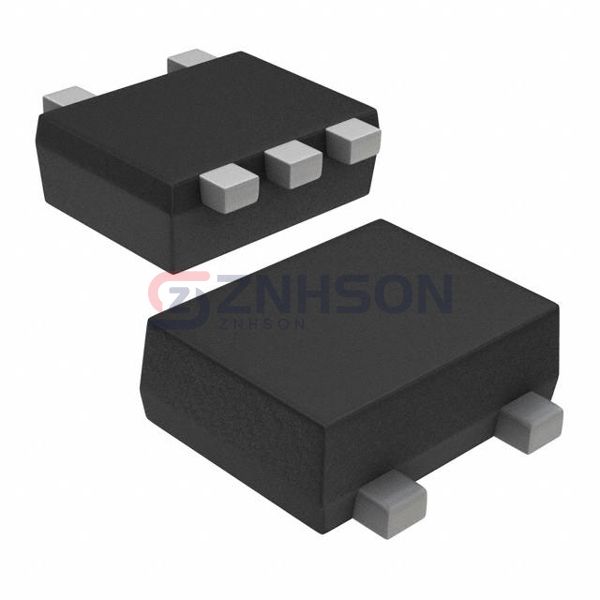

DMG963HD0R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5
$0.00
Available to order
Reference Price (USD)
8,000+
$0.24517
16,000+
$0.23040
24,000+
$0.22793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMG963HD0R by Panasonic Electronic Components is a cutting-edge pre-biased BJT array designed for high-performance applications. Its unique architecture provides superior current handling and thermal dissipation, making it ideal for power electronics and RF modules. Commonly employed in aerospace, defense, and consumer electronics, this transistor array offers exceptional reliability. Panasonic Electronic Components's state-of-the-art production facilities ensure that the DMG963HD0R delivers consistent results under extreme conditions. Engineers trust this product for its precision, durability, and ease of integration into complex systems.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms, 22kOhms
- Resistor - Emitter Base (R2): 10kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F4-B
