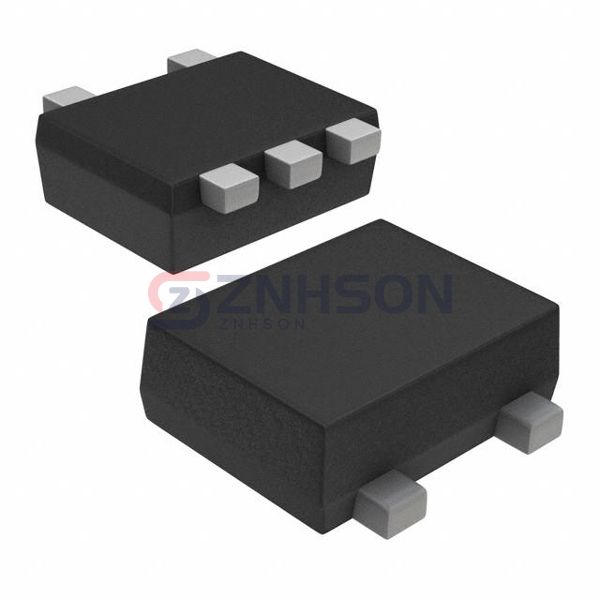

DMG963HE0R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5
$0.00
Available to order
Reference Price (USD)
8,000+
$0.24517
16,000+
$0.23040
24,000+
$0.22793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMG963HE0R from Panasonic Electronic Components is a high-performance Bipolar Junction Transistor (BJT) Array designed for precision applications. This pre-biased transistor array integrates multiple BJTs in a compact package, offering excellent thermal stability and consistent performance. Ideal for amplification and switching circuits, the DMG963HE0R ensures low noise and high gain, making it a reliable choice for industrial and consumer electronics. Common applications include motor control, LED drivers, and audio amplifiers. With robust construction and advanced manufacturing techniques, Panasonic Electronic Components's DMG963HE0R delivers unmatched reliability in demanding environments.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V, 30V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA / 1.2V @ 330µA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F4-B
Related Products
NXP USA Inc.
PUMF12,115
Panasonic Electronic Components
UP0421600L
Panasonic Electronic Components
NP061A300A
Panasonic Electronic Components
DMC266060R
Infineon Technologies
BCR108SH6433XTMA1
Toshiba Semiconductor and Storage

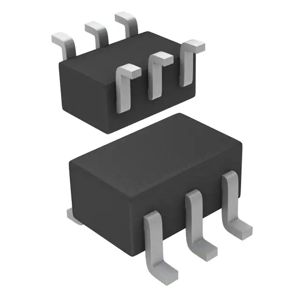

RN49A1(T5L,F,T)
