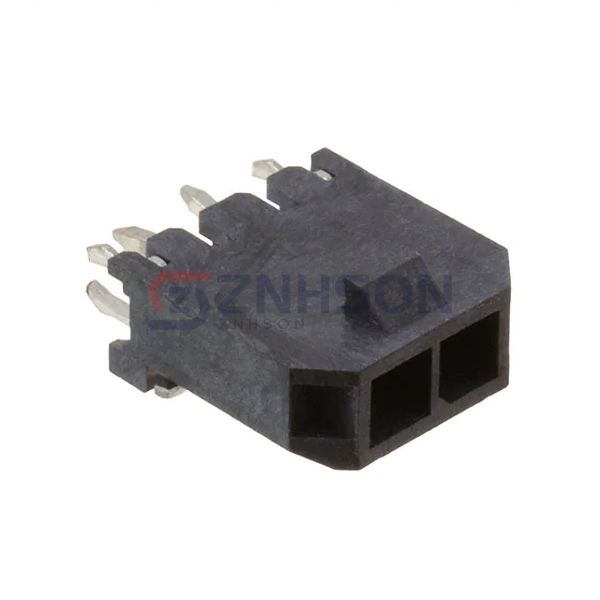

DML-1-02-A-V-T-A-SBL
Adam Tech
Adam Tech
CONN HEADER VERT 2POS 3MM
$0.91
Available to order
Reference Price (USD)
1+
$0.87000
10+
$0.76500
100+
$0.66000
500+
$0.54000
1,000+
$0.48000
5,000+
$0.42000
10,000+
$0.39900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the DML-1-02-A-V-T-A-SBL rectangular connector header from Adam Tech. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the DML-1-02-A-V-T-A-SBL is perfect for automotive, industrial, and consumer electronics. Adam Tech ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
Related Products
Harwin Inc.
M20-8900405R
Molex
0026482026
Samtec Inc.
FTMH-117-02-F-DV-A
Samtec Inc.
TSW-144-26-G-S
TE Connectivity AMP Connectors
826647-5
Preci-Dip
456-V3-216-00-014101
Amphenol ICC (FCI)

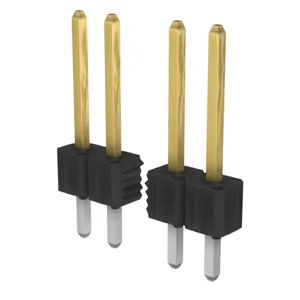

78511-206HLF
Hirose Electric Co Ltd

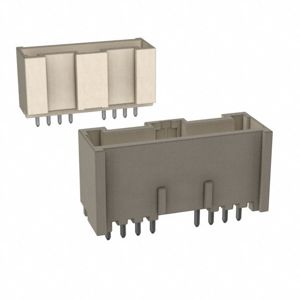

DF1EC-8P-2.5DSA(36)
Samtec Inc.

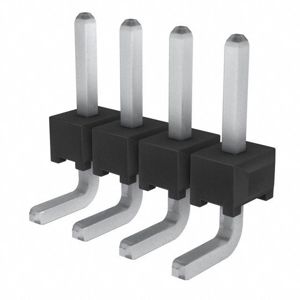

TMM-113-01-T-S-RA
