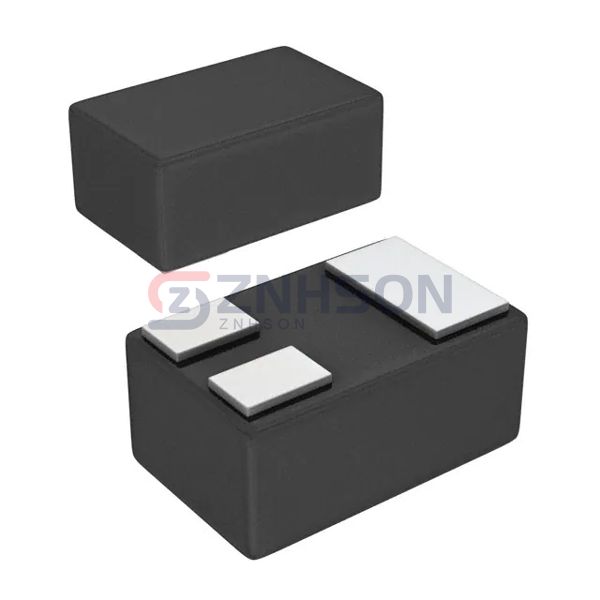

DMN2250UFB-7B
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 1.35A 3DFN
$0.07
Available to order
Reference Price (USD)
10,000+
$0.07350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMN2250UFB-7B from Diodes Incorporated sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Diodes Incorporated's DMN2250UFB-7B for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1.35A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 170mOhm @ 1A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.1 nC @ 10 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 94 pF @ 16 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X1-DFN1006-3
- Package / Case: 3-UFDFN
