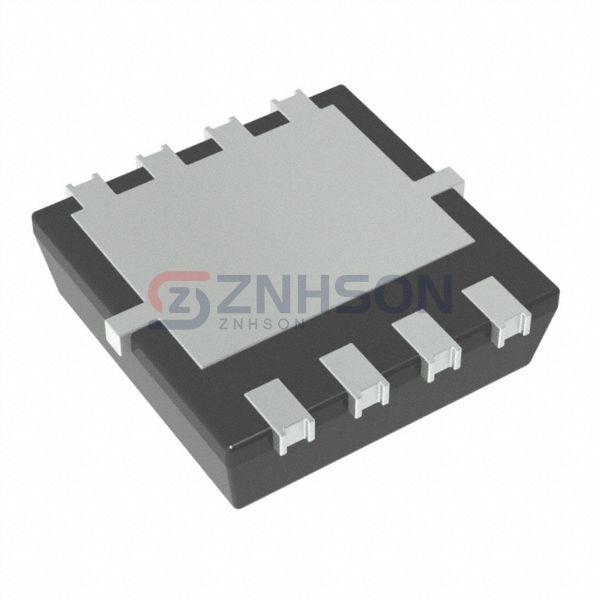

DMN3009LFVW-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 60A POWERDI3333
$0.63
Available to order
Reference Price (USD)
2,000+
$0.27508
6,000+
$0.25920
10,000+
$0.24331
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DMN3009LFVW-7 from Diodes Incorporated, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the DMN3009LFVW-7 ensures reliable performance in demanding environments. Upgrade your circuit designs with Diodes Incorporated's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 42 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2000 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerDI3333-8 (SWP) Type UX
- Package / Case: 8-PowerVDFN
