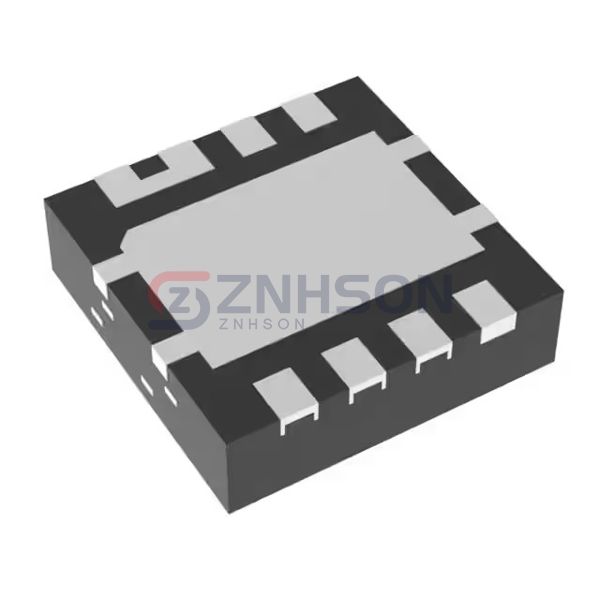

DMN3012LEG-7
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 25V-30V POWERDI333
$1.66
Available to order
Reference Price (USD)
1+
$1.66000
500+
$1.6434
1000+
$1.6268
1500+
$1.6102
2000+
$1.5936
2500+
$1.577
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the DMN3012LEG-7 by Diodes Incorporated, a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the DMN3012LEG-7 ensures energy efficiency and robust performance. Diodes Incorporated's commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 10A (Ta), 20A (Tc)
- Rds On (Max) @ Id, Vgs: 12mOhm @ 15A, 5V, 6mOhm @ 15A, 5V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA, 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.1nC @ 4.5V, 12.6nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 850pF @ 15V, 1480pF @ 15V
- Power - Max: 2.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerLDFN
- Supplier Device Package: PowerDI3333-8 (Type D)
