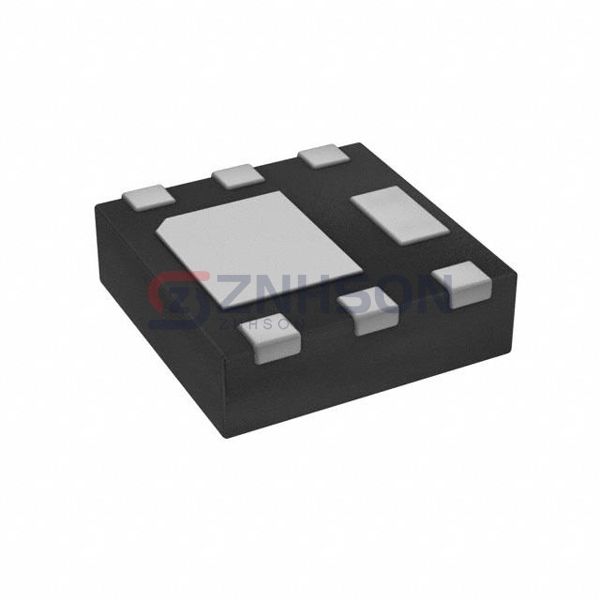

DMN3020UFDF-13
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 15A 6UDFN
$0.14
Available to order
Reference Price (USD)
10,000+
$0.15940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMN3020UFDF-13 single MOSFET from Diodes Incorporated is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the DMN3020UFDF-13 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 19mOhm @ 4.5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 8 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1304 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.03W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
Related Products
STMicroelectronics
STFW60N65M5
Alpha & Omega Semiconductor Inc.

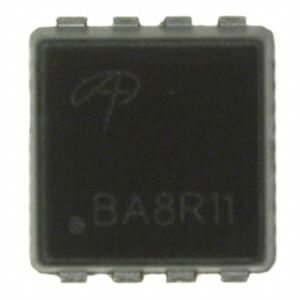

AON6368
Infineon Technologies
IPB020N10N5LFATMA1
Infineon Technologies
IRFZ48NSTRLPBF
Toshiba Semiconductor and Storage

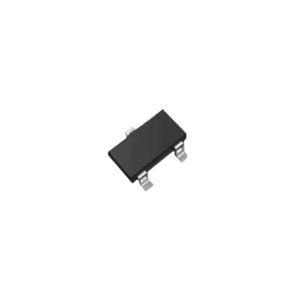

SSM3J168F,LXHF
Infineon Technologies

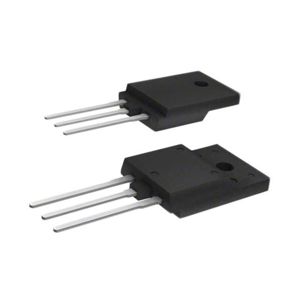

IPA60R520C6XKSA1
Micro Commercial Co
MCAC10H045Y-TP
Infineon Technologies
IRF8734TRPBF
IXYS

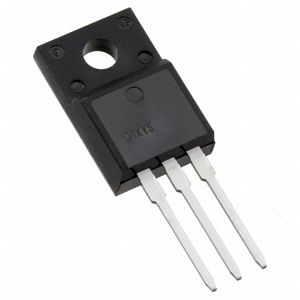

IXFP30N25X3M
