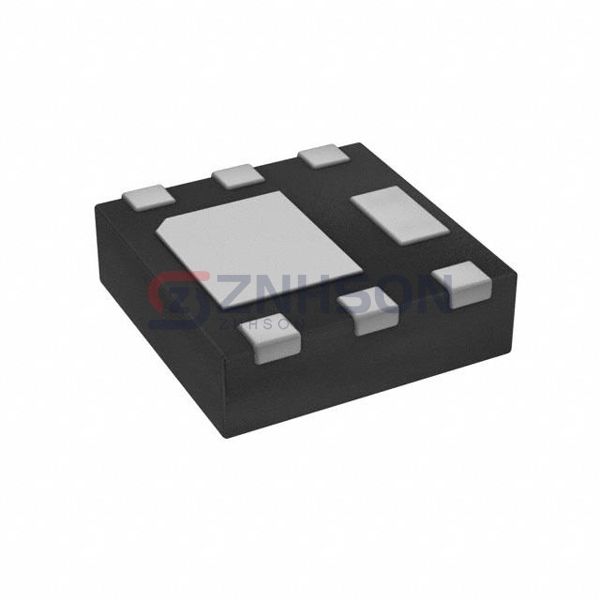

DMP2023UFDF-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 7.6A 6UDFN
$0.74
Available to order
Reference Price (USD)
1+
$0.74000
500+
$0.7326
1000+
$0.7252
1500+
$0.7178
2000+
$0.7104
2500+
$0.703
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DMP2023UFDF-7 from Diodes Incorporated, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the DMP2023UFDF-7 ensures reliable performance in demanding environments. Upgrade your circuit designs with Diodes Incorporated's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 27mOhm @ 7A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 1837 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 730mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
