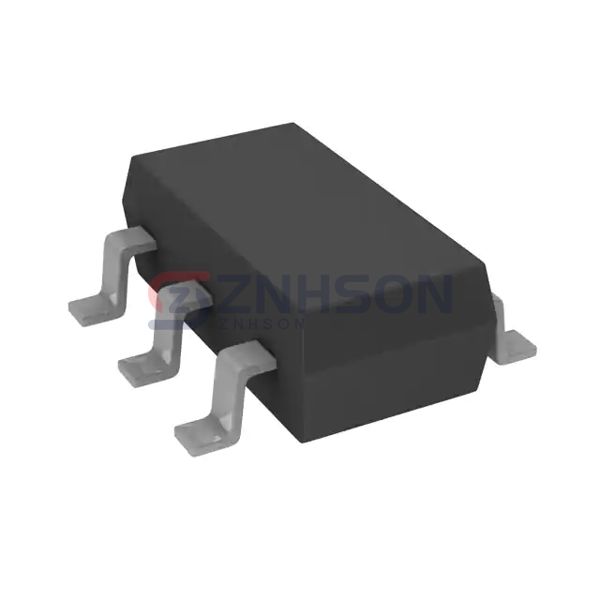

DMPH2040UVTQ-13
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 5.6/11.7A TSOT26
$0.19
Available to order
Reference Price (USD)
1+
$0.19110
500+
$0.189189
1000+
$0.187278
1500+
$0.185367
2000+
$0.183456
2500+
$0.181545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMPH2040UVTQ-13 single MOSFET from Diodes Incorporated is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the DMPH2040UVTQ-13 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.6A (Ta), 11.7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 38mOhm @ 8.9A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 8 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 834 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TSOT-26
- Package / Case: SOT-23-6 Thin, TSOT-23-6
