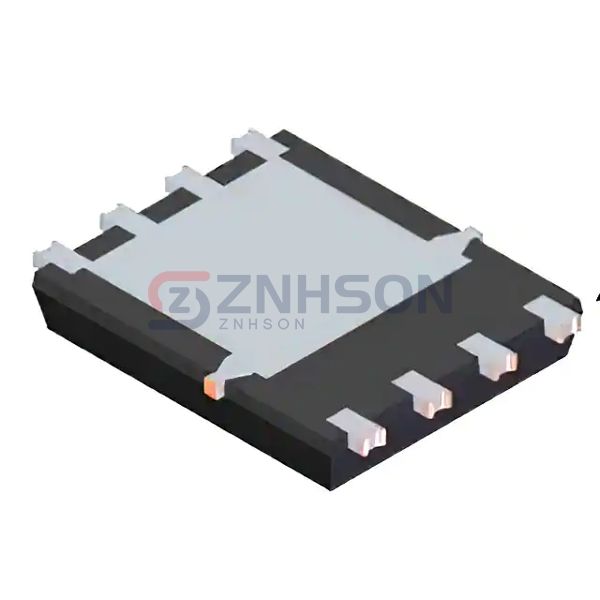

DMTH4014LPSWQ-13
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 31V~40V POWERDI506
$0.27
Available to order
Reference Price (USD)
1+
$0.26972
500+
$0.2670228
1000+
$0.2643256
1500+
$0.2616284
2000+
$0.2589312
2500+
$0.256234
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMTH4014LPSWQ-13 from Diodes Incorporated sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Diodes Incorporated's DMTH4014LPSWQ-13 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 43.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 14.5mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.2 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 750 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 4W (Ta), 46.9W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerDI5060-8 (Type UX)
- Package / Case: 8-PowerTDFN
