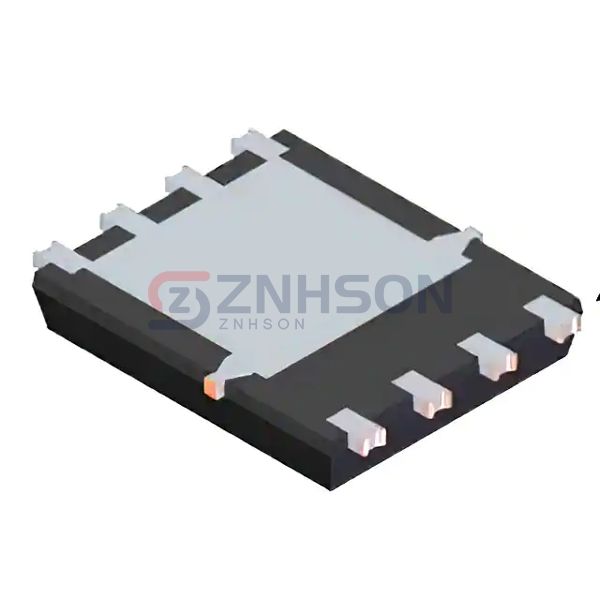

DMTH47M2SPSWQ-13
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 31V~40V POWERDI506
$0.33
Available to order
Reference Price (USD)
1+
$0.33495
500+
$0.3316005
1000+
$0.328251
1500+
$0.3249015
2000+
$0.321552
2500+
$0.3182025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DMTH47M2SPSWQ-13 by Diodes Incorporated, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The DMTH47M2SPSWQ-13 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Diodes Incorporated.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 73A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12.1 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 897 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.3W (Ta), 68W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerDI5060-8 (Type UX)
- Package / Case: 8-PowerTDFN
