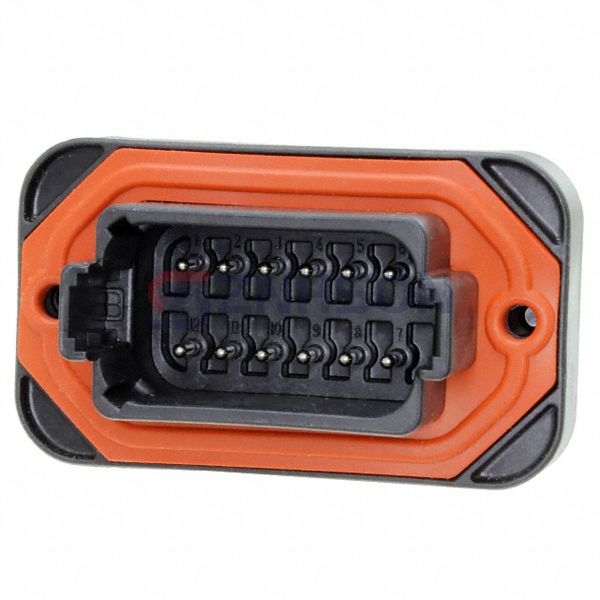

DT15-12PB
TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors
CONN HEADER VERT 12POS 4.44MM
$12.18
Available to order
Reference Price (USD)
1+
$10.23000
10+
$9.78100
25+
$8.89200
50+
$8.44740
100+
$8.22500
250+
$7.33584
500+
$6.89126
1,000+
$6.09098
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the DT15-12PB rectangular connector header from TE Connectivity Deutsch Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the DT15-12PB meets the highest industry standards. TE Connectivity Deutsch Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.175" (4.44mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 1.185" (30.10mm)
- Contact Shape: Circular
- Contact Finish - Mating: Nickel
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250VDC
