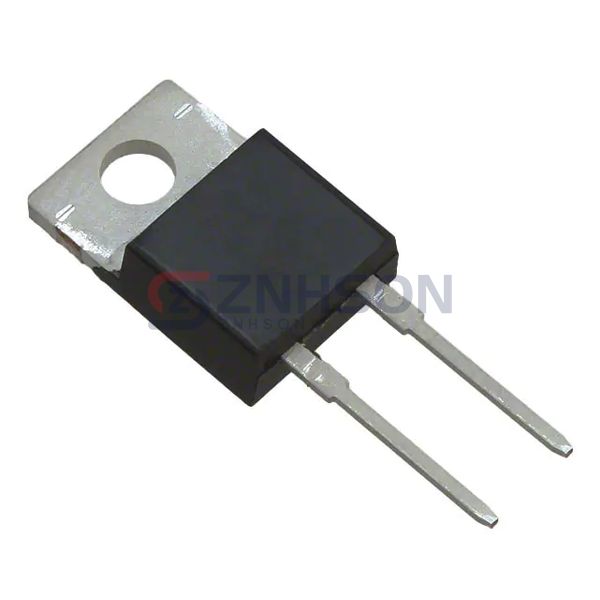

E4D20120A
Wolfspeed, Inc.
Wolfspeed, Inc.
E SERIES, 20 AMP, 1200V G4 SCHOT
$25.55
Available to order
Reference Price (USD)
1+
$26.47000
100+
$22.08010
500+
$18.91004
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The E4D20120A from Wolfspeed, Inc. is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Wolfspeed, Inc.'s dedication to quality means the E4D20120A meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io): 54.5A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 20 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 200 µA @ 1200 V
- Capacitance @ Vr, F: 1500pF @ 0V, 1MHz
- Mounting Type: Through Hole
- Package / Case: TO-220-2
- Supplier Device Package: TO-220-2
- Operating Temperature - Junction: -55°C ~ 175°C
Related Products
Panjit International Inc.
ED504S_L2_00001
Diotec Semiconductor
BY252-CT
Panjit International Inc.
GS1KWG_R1_00001
onsemi
FFSP1065A
Vishay General Semiconductor - Diodes Division
S2D-E3/52T
Vishay General Semiconductor - Diodes Division

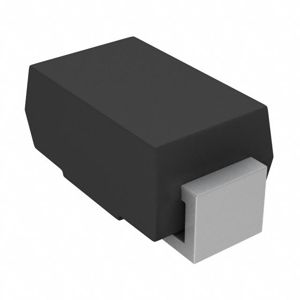

SS25S-E3/5AT
Vishay General Semiconductor - Diodes Division

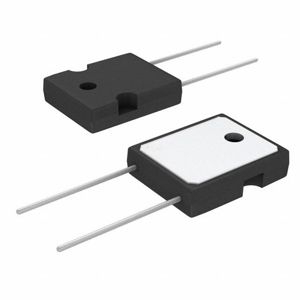

VS-EPU3006LHN3
Vishay General Semiconductor - Diodes Division

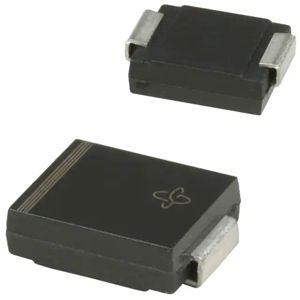

RS3J-M3/9AT
Diotec Semiconductor

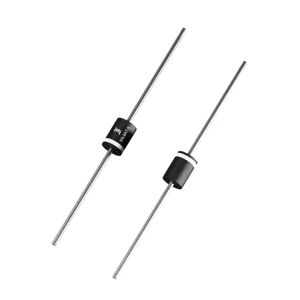

SB1540-3G

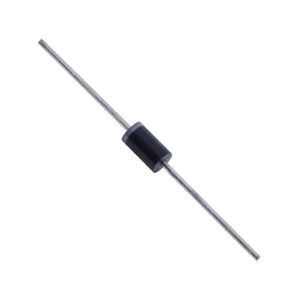

NTE Electronics, Inc
