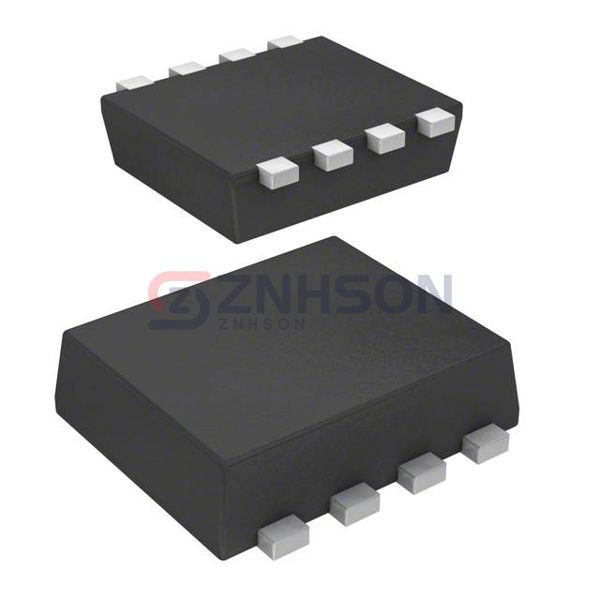

ECH8320-TL-H
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET P-CH 20V 9.5A SOT28FL
$0.36
Available to order
Reference Price (USD)
1+
$0.36000
500+
$0.3564
1000+
$0.3528
1500+
$0.3492
2000+
$0.3456
2500+
$0.342
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ECH8320-TL-H by Fairchild Semiconductor is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the ECH8320-TL-H is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 14.5mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 1.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 2300 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta)
- Operating Temperature: 150°C
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-28FL/ECH8
- Package / Case: 8-SMD, Flat Lead
