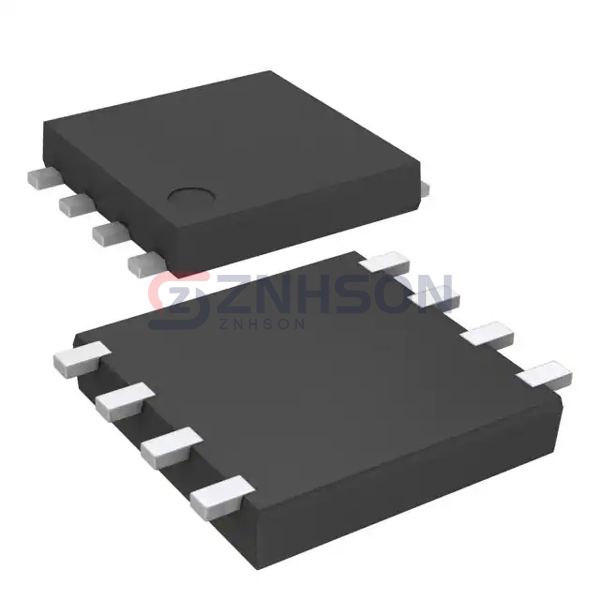

ECH8502-TL-H
onsemi
onsemi
TRANS NPN/PNP 100V/50V 5A 8ECH
$0.00
Available to order
Reference Price (USD)
3,000+
$0.39468
6,000+
$0.37697
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ECH8502-TL-H BJT Array by onsemi, a versatile solution for modern electronic designs. This transistor array excels in high-speed switching and linear amplification, featuring matched pairs for consistent performance. Commonly used in audio amplifiers, LED drivers, and power management systems, the ECH8502-TL-H is a staple in telecommunications and renewable energy applications. With robust construction and ESD protection, it meets stringent industry standards while simplifying PCB layout for compact devices.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 5A
- Voltage - Collector Emitter Breakdown (Max): 100V, 50V
- Vce Saturation (Max) @ Ib, Ic: 120mV @ 125mA, 2.5A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 500mA, 2V
- Power - Max: 1.6W
- Frequency - Transition: 290MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Flat Lead
- Supplier Device Package: 8-ECH
Related Products
Diodes Incorporated
ZDT694TC
Central Semiconductor Corp
MD8003
Diodes Incorporated
ZXTDA1M832TA
Panasonic Electronic Components
XN0555300L
Diodes Incorporated
MMDT3906-7
Sanken
STA472A
Central Semiconductor Corp

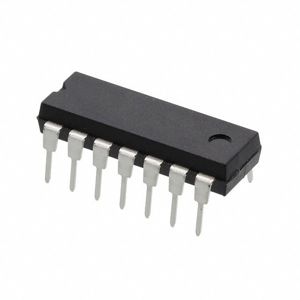

MPQ6002 PBFREE
