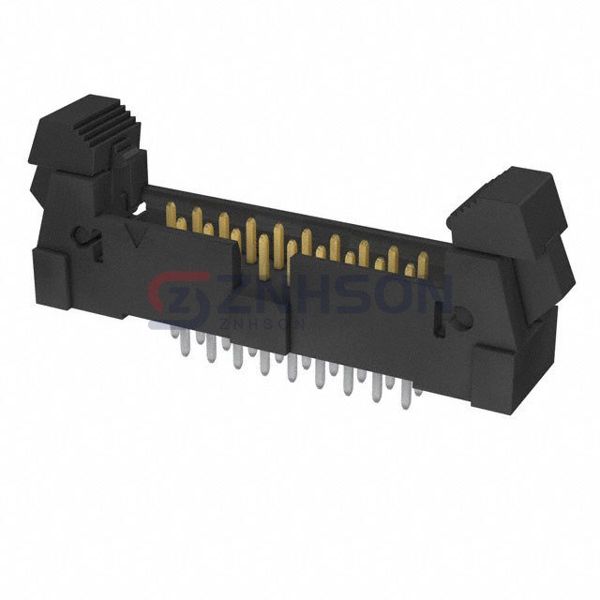

EHT-110-01-F-D-01
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 20POS 2MM
$7.00
Available to order
Reference Price (USD)
1+
$4.73000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the EHT-110-01-F-D-01 rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the EHT-110-01-F-D-01 meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: 19
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
9-1971846-3
Preci-Dip
499-10-208-10-009101
Samtec Inc.
BKT-151-02-L-V-S
Samtec Inc.
TSW-137-23-L-S
Mill-Max Manufacturing Corp.
349-10-114-00-560000
Samtec Inc.
TSW-118-26-L-S
Sullins Connector Solutions
PREC002SFAN-RC
Preci-Dip
800-10-037-30-001101
Samtec Inc.

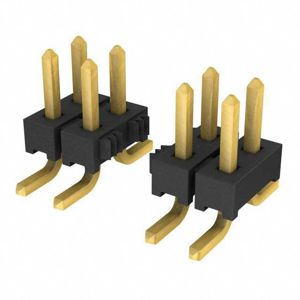

TMM-118-06-G-D-SM
