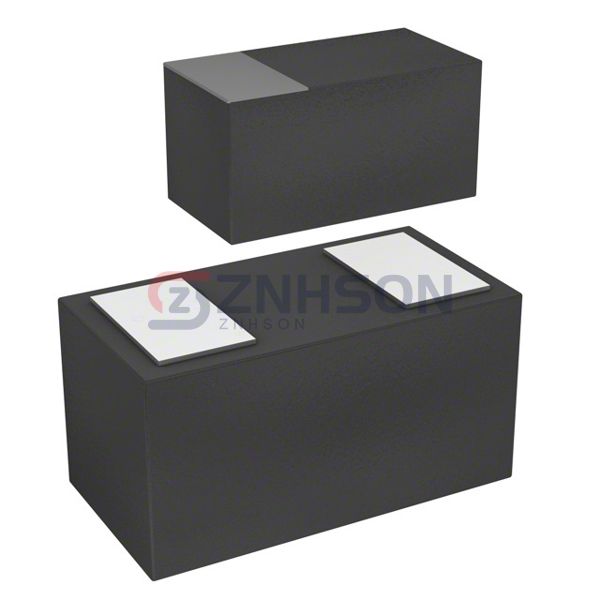

ESDZV18-1BF4TK
STMicroelectronics
STMicroelectronics
TVS DIODE 24VWM 21.5VC ST0201
$0.04
Available to order
Reference Price (USD)
1+
$0.04066
500+
$0.0402534
1000+
$0.0398468
1500+
$0.0394402
2000+
$0.0390336
2500+
$0.038627
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESDZV18-1BF4TK by STMicroelectronics is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the ESDZV18-1BF4TK can secure CAN bus lines in vehicles against voltage spikes. Rely on STMicroelectronics for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 24V (Max)
- Voltage - Breakdown (Min): 18V
- Voltage - Clamping (Max) @ Ipp: 21.5V (Typ)
- Current - Peak Pulse (10/1000µs): 6A (8/20µs)
- Power - Peak Pulse: 140W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 3pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: ST0201
