EZ-240-NF-X
Amphenol Times Microwave Systems
Amphenol Times Microwave Systems

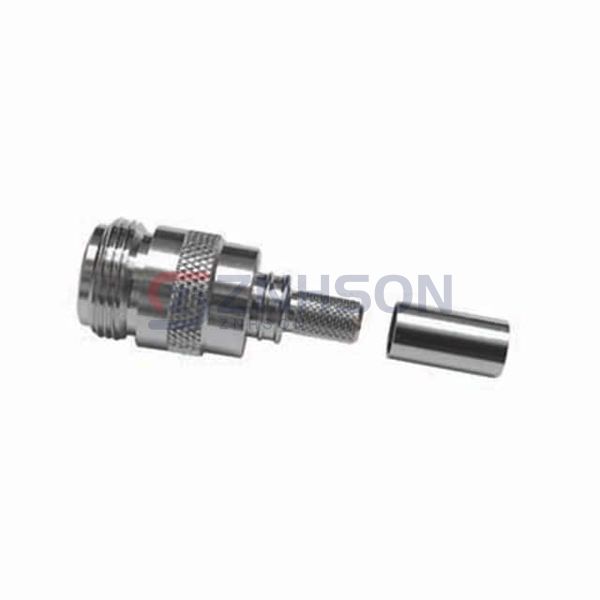

N-FEMALE (JACK) CRIMP CONNECTOR
$12.73
Available to order
Reference Price (USD)
1+
$12.73133
500+
$12.6040167
1000+
$12.4767034
1500+
$12.3493901
2000+
$12.2220768
2500+
$12.0947635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EZ-240-NF-X from Amphenol Times Microwave Systems represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The EZ-240-NF-X variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: N Type
- Connector Type: Jack, Female Socket
- Contact Termination: Push On
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: LMR-240
- Fastening Type: Threaded
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
