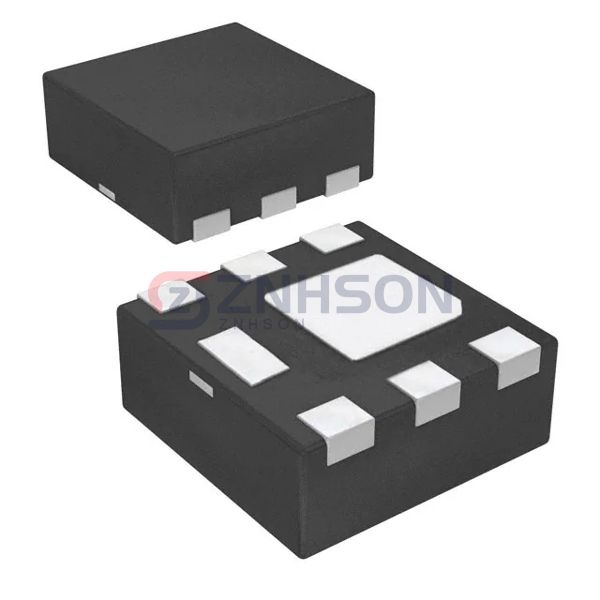

FDMA507PZ
onsemi
onsemi
MOSFET P-CH 20V 7.8A 6MICROFET
$1.17
Available to order
Reference Price (USD)
3,000+
$0.30305
6,000+
$0.28215
15,000+
$0.27170
30,000+
$0.26600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FDMA507PZ from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the FDMA507PZ ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 24mOhm @ 7.8A, 5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 42 nC @ 5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 2015 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.4W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-MicroFET (2x2)
- Package / Case: 6-WDFN Exposed Pad
