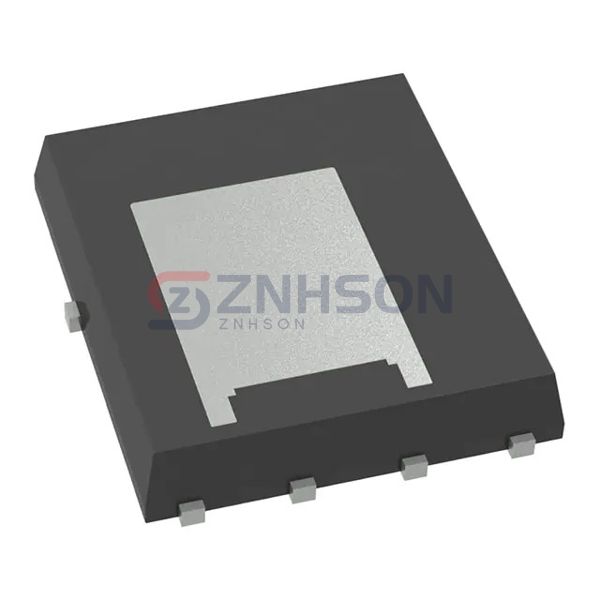

FDMS2506SDC
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 25V 39A/49A DLCOOL56
$1.70
Available to order
Reference Price (USD)
1+
$1.70000
500+
$1.683
1000+
$1.666
1500+
$1.649
2000+
$1.632
2500+
$1.615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS2506SDC single MOSFET from Fairchild Semiconductor is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the FDMS2506SDC is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 39A (Ta), 49A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.45mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 93 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5945 pF @ 13 V
- FET Feature: -
- Power Dissipation (Max): 3.3W (Ta), 89W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
