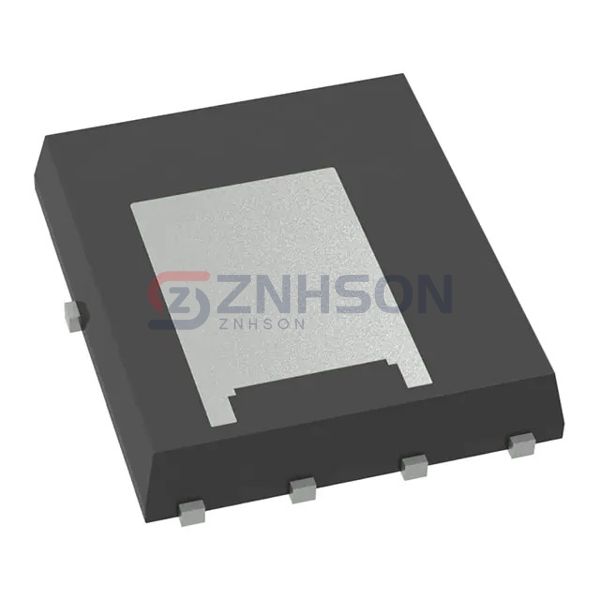

FDMS86300DC
onsemi
onsemi
MOSFET N-CH 80V 24A/76A DLCOOL56
$3.22
Available to order
Reference Price (USD)
3,000+
$1.18800
6,000+
$1.14400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS86300DC from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's FDMS86300DC for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 76A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
- Rds On (Max) @ Id, Vgs: 3.1mOhm @ 24A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 101 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7005 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 125W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
onsemi
NTF2955T1G
Toshiba Semiconductor and Storage
TPHR9203PL1,LQ
onsemi
MT9M131C12STC-MI-DR
Fairchild Semiconductor
HUFA75329S3ST
Central Semiconductor Corp
CDM22011-600LRFP SL
Alpha & Omega Semiconductor Inc.

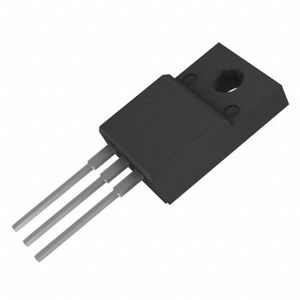

AOTF240L
