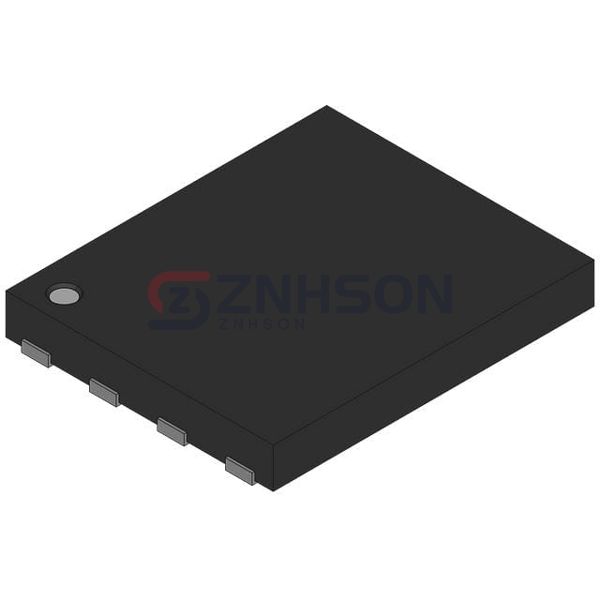

FDMS8690
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 30V 14A/27A 8MLP
$0.84
Available to order
Reference Price (USD)
1+
$0.84000
500+
$0.8316
1000+
$0.8232
1500+
$0.8148
2000+
$0.8064
2500+
$0.798
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the FDMS8690 by Fairchild Semiconductor, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The FDMS8690 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Fairchild Semiconductor.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 27A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 9mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1680 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 37.8W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-MLP (5x6), Power56
- Package / Case: 8-PowerWDFN
