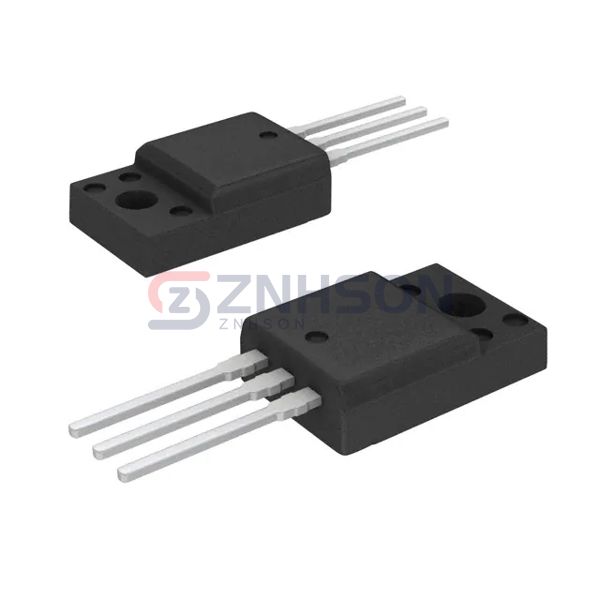

FDPF770N15A
onsemi
onsemi
MOSFET N-CH 150V 10A TO220F
$1.56
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.43200
100+
$1.13190
500+
$0.87780
1,000+
$0.69300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FDPF770N15A from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the FDPF770N15A ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 10A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 77mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.2 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 765 pF @ 75 V
- FET Feature: -
- Power Dissipation (Max): 21W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220F-3
- Package / Case: TO-220-3 Full Pack
Related Products
Infineon Technologies
BTS121ANKSA1
Vishay Siliconix
SIA485DJ-T1-GE3
Renesas Electronics America Inc
2SK2736-E
Vishay Siliconix

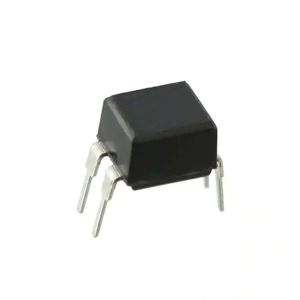

IRFD110PBF
Fairchild Semiconductor
FDS4080N3
onsemi
NVMFWS020N06CT1G
Infineon Technologies
IRLB3034PBF
Infineon Technologies
IRFZ46ZSTRLPBF
Vishay Siliconix

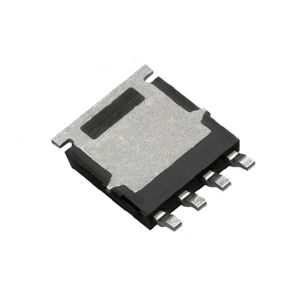

SQJ872EP-T1_GE3
