FF225R12ME4PB11BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 450A 20MW
$117.27
Available to order
Reference Price (USD)
6+
$115.51167
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-generation power control with Infineon Technologies's FF225R12ME4PB11BPSA1 IGBT module. As a leader in Discrete Semiconductor Products, this transistor module features state-of-the-art trench gate technology and advanced carrier lifetime control. The FF225R12ME4PB11BPSA1 offers: symmetrical blocking capability, low switching losses, and excellent cosmic ray robustness. Target applications include electric bus charging infrastructure, industrial plasma generators, and high-power laser drivers. Implement the FF225R12ME4PB11BPSA1 in your next-generation HVDC systems or particle accelerator power supplies. Infineon Technologies delivers reliability where it matters most with the FF225R12ME4PB11BPSA1 IGBT module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 450 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 225A
- Current - Collector Cutoff (Max): 3 mA
- Input Capacitance (Cies) @ Vce: 13 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Microchip Technology
APTGLQ400A120T6G
Infineon Technologies
FF300R17KE4PHOSA1
Infineon Technologies
FS225R12KE3BOSA1
Infineon Technologies
FF300R12KE4EHOSA1
Infineon Technologies
FF900R12ME7B11NPSA1
Infineon Technologies
FS200R07N3E4RB11BOSA1
Powerex Inc.

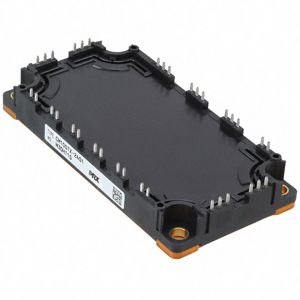

CM100TX-24S1
Infineon Technologies

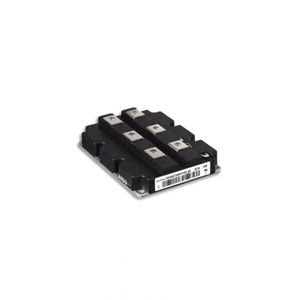

FZ3600R17HE4PHPSA1
