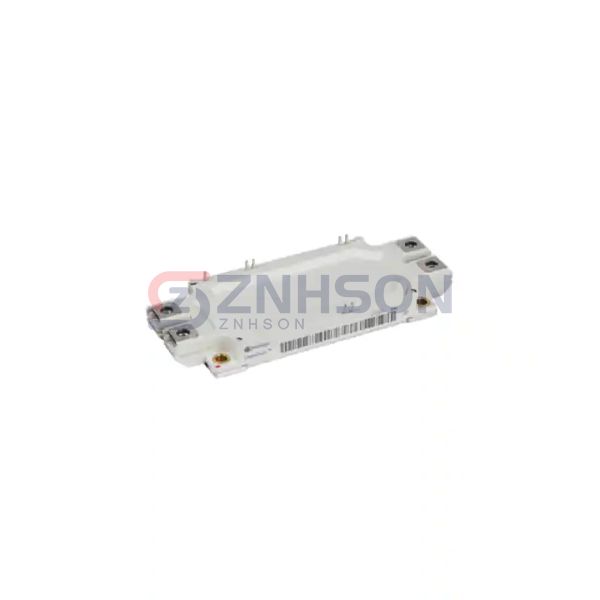

FF225R12ME4PBPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 450A 20MW
$176.02
Available to order
Reference Price (USD)
6+
$115.56500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's FF225R12ME4PBPSA1 sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the FF225R12ME4PBPSA1 in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Infineon Technologies to deliver cutting-edge IGBT solutions with the FF225R12ME4PBPSA1 power module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 450 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 225A
- Current - Collector Cutoff (Max): 3 mA
- Input Capacitance (Cies) @ Vce: 13 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
