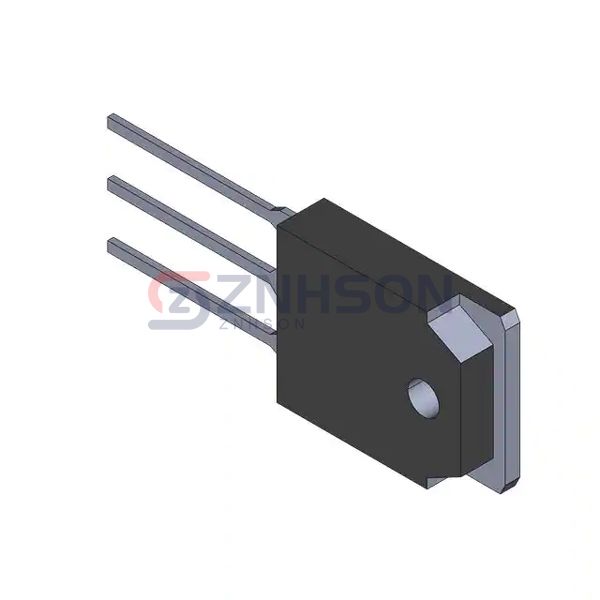

FGA70N30TDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 40A, 300V, N-CHANNEL
$1.62
Available to order
Reference Price (USD)
1+
$1.62000
500+
$1.6038
1000+
$1.5876
1500+
$1.5714
2000+
$1.5552
2500+
$1.539
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FGA70N30TDTU Single IGBT transistor by Fairchild Semiconductor, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the FGA70N30TDTU ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the FGA70N30TDTU for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 300 V
- Current - Collector (Ic) (Max): -
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 1.5V @ 15V, 20A
- Power - Max: 201 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 125 nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Reverse Recovery Time (trr): 21 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3PN
