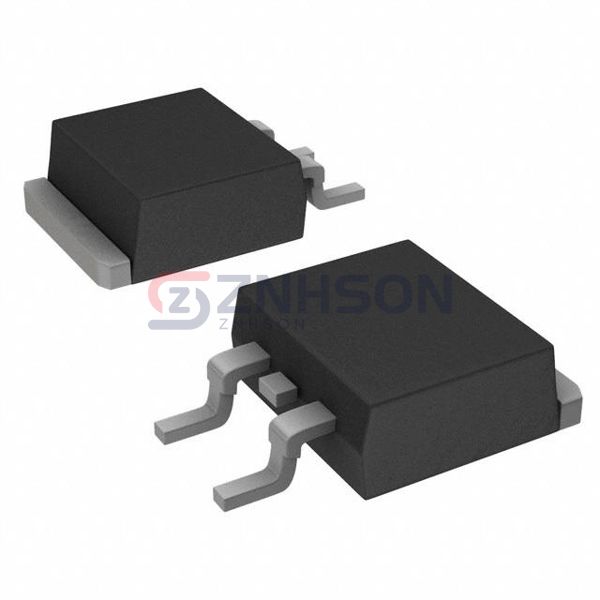

FGB3056-F085
onsemi
onsemi
ECOSPARK IGNITION IGBT
$3.44
Available to order
Reference Price (USD)
800+
$1.62545
1,600+
$1.34681
2,400+
$1.25392
5,600+
$1.23844
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FGB3056-F085 Single IGBT transistor by onsemi, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the FGB3056-F085 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the FGB3056-F085 for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 29 A
- Current - Collector Pulsed (Icm): -
- Vce(on) (Max) @ Vge, Ic: 1.55V @ 5V, 8A
- Power - Max: 200 W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: 20 nC
- Td (on/off) @ 25°C: 1.3µs/8.2µs
- Test Condition: -
- Reverse Recovery Time (trr): 2.4 µs
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK-3 (TO-263-3)
