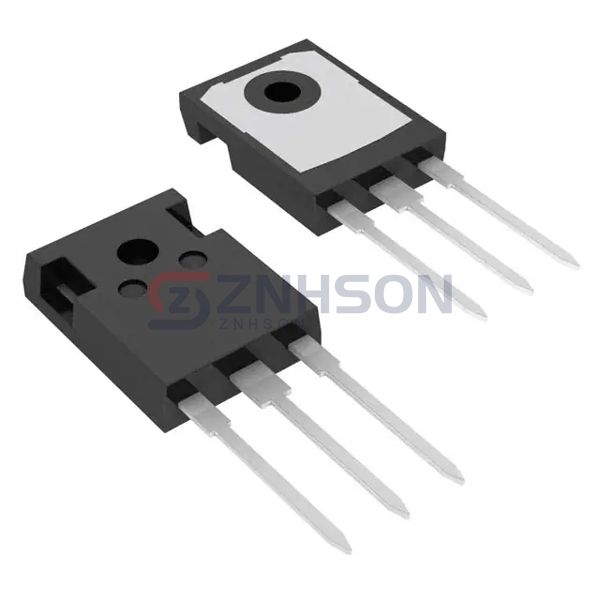

FGH80N60FD2TU
onsemi
onsemi
IGBT 600V 80A 290W TO247
$5.28
Available to order
Reference Price (USD)
1+
$4.84000
10+
$4.36500
450+
$3.42678
900+
$3.09044
1,350+
$2.63016
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH80N60FD2TU from onsemi is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose FGH80N60FD2TU for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 290 W
- Switching Energy: 1mJ (on), 520µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 21ns/126ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 61 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
Infineon Technologies
IRGSL4640DPBF
Infineon Technologies
IKD10N60RATMA1
onsemi
FGB20N60SFD-F085
IXYS
IXYH60N90C3
Infineon Technologies
IRG7PH46UEP
Infineon Technologies
SGP10N60A
STMicroelectronics
STGW20V60DF
IXYS
IXGH32N120A3
Infineon Technologies

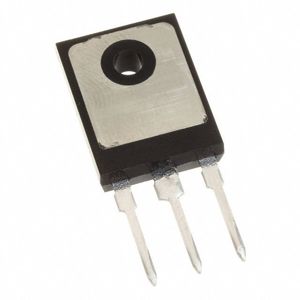

IKW40N65H5FKSA1
