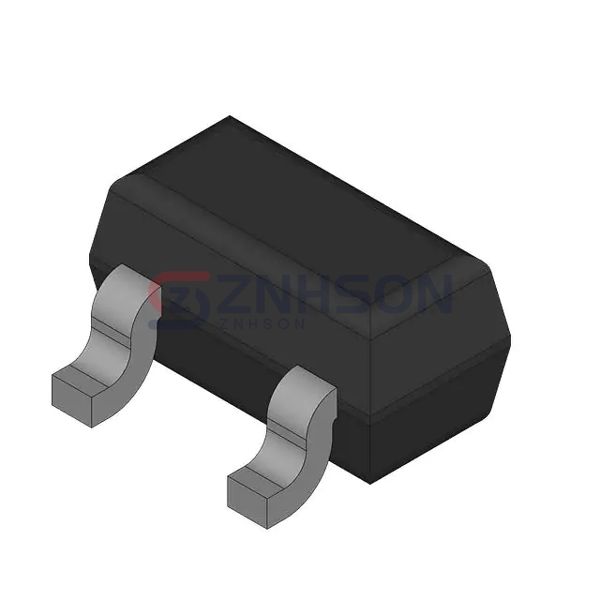

FJY3006R
Fairchild Semiconductor
Fairchild Semiconductor
SMALL SIGNAL BIPOLAR TRANSISTOR
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with Fairchild Semiconductor's FJY3006R, a pre-biased BJT transistor engineered for efficiency. This single bipolar transistor features optimized current gain and minimal leakage, perfect for low-power circuits. Its compact package suits space-constrained applications like IoT devices, automotive modules, and power management systems. Fairchild Semiconductor delivers superior discrete semiconductor solutions meeting rigorous industry standards for durability and performance.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 68 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- Frequency - Transition: 250 MHz
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: SC-89, SOT-490
- Supplier Device Package: SOT-523F
