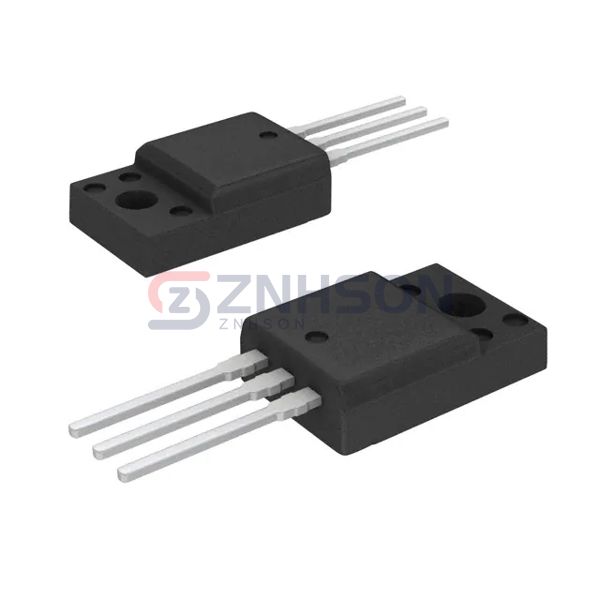

FQPF30N06L
onsemi
onsemi
MOSFET N-CH 60V 22.5A TO220F
$1.36
Available to order
Reference Price (USD)
1+
$1.56000
10+
$1.37900
100+
$1.09790
500+
$0.85936
1,000+
$0.68591
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the FQPF30N06L single MOSFET from onsemi. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust onsemi's FQPF30N06L for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 22.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 35mOhm @ 11.3A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1040 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 38W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220F-3
- Package / Case: TO-220-3 Full Pack
