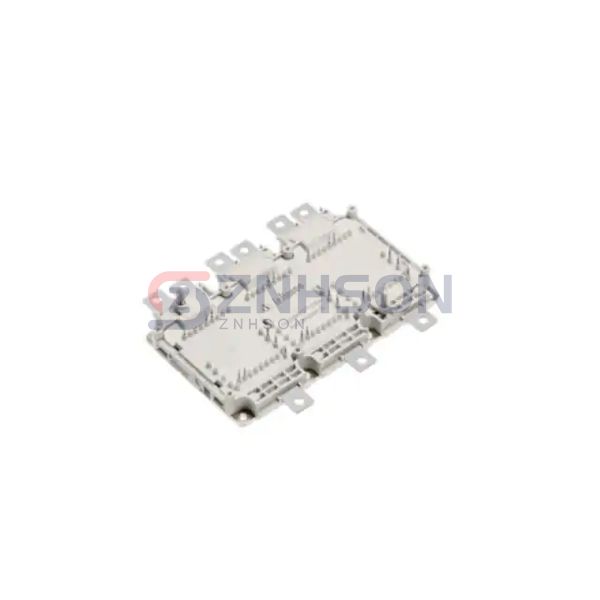

FS820R08A6P2BBPSA1
Infineon Technologies
Infineon Technologies
IGBT MODULE PACK DRV HYBRIDD-1
$780.00
Available to order
Reference Price (USD)
6+
$599.26333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the FS820R08A6P2BBPSA1 IGBT module by Infineon Technologies sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The FS820R08A6P2BBPSA1 finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Infineon Technologies continues to lead the IGBT module revolution with innovations like the FS820R08A6P2BBPSA1.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 750 V
- Current - Collector (Ic) (Max): 450 A
- Power - Max: 714 W
- Vce(on) (Max) @ Vge, Ic: 1.35V @ 15V, 450A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 80 nF @ 50 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: AG-HYBRIDD-2
