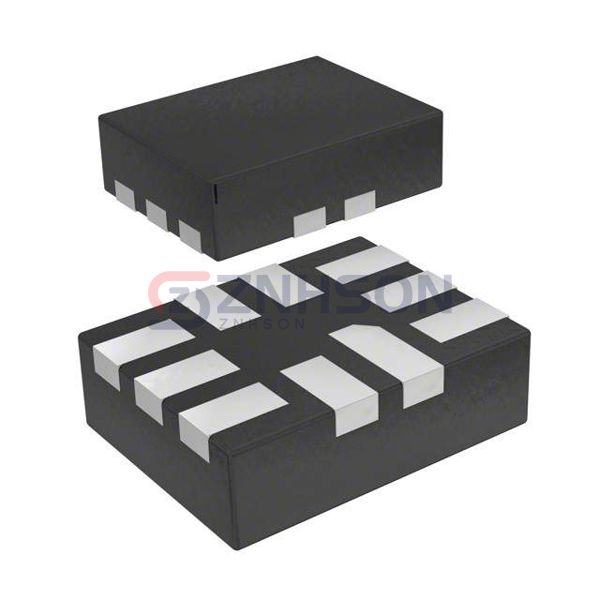

FSA2259UMX
onsemi
onsemi
IC SWITCH DUAL SPDT 10UMLP
$0.75
Available to order
Reference Price (USD)
5,000+
$0.14500
10,000+
$0.13500
25,000+
$0.12800
50,000+
$0.12500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's FSA2259UMX redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The FSA2259UMX is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Last Time Buy
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 500mOhm (Typ)
- Channel-to-Channel Matching (ΔRon): 80mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.4V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 55ns, 30ns
- -3db Bandwidth: 50MHz
- Charge Injection: 25pC
- Channel Capacitance (CS(off), CD(off)): 30pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -100dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UMLP (1.8x1.4)
