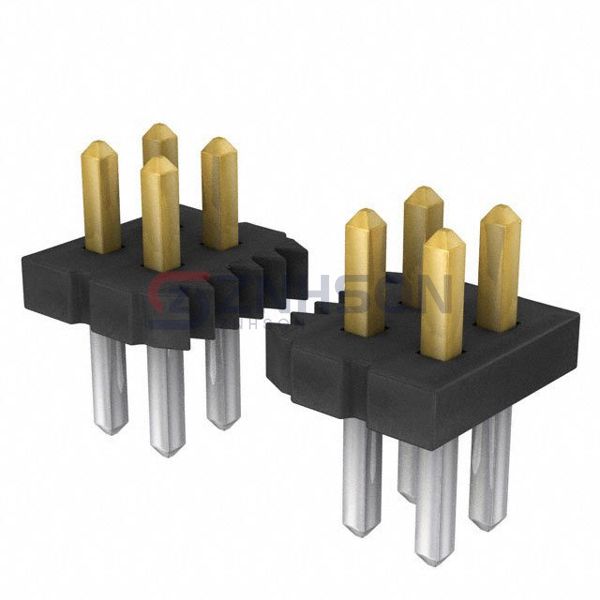

FTS-137-03-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 74POS 1.27MM
$8.86
Available to order
Reference Price (USD)
1+
$8.21000
10+
$7.85300
25+
$7.13960
50+
$6.78260
100+
$6.60410
250+
$5.89012
500+
$5.53312
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the FTS-137-03-L-D rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 74
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.065" (1.65mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.189" (4.80mm)
- Insulation Height: 0.034" (0.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
