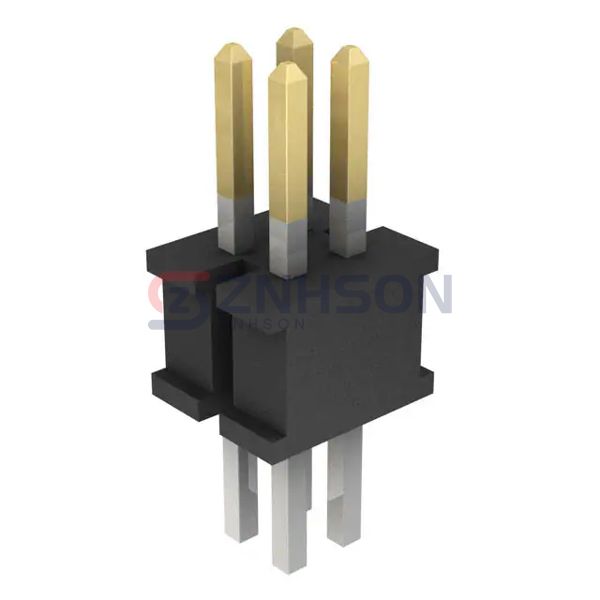

FTSH-102-03-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 4POS 1.27MM
$1.53
Available to order
Reference Price (USD)
1+
$0.93000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the FTSH-102-03-L-D rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the FTSH-102-03-L-D meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.065" (1.65mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.255" (6.48mm)
- Insulation Height: 0.099" (2.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
CNC Tech
4282-1-0100-02-SP
Sullins Connector Solutions
PBC02SADN
Samtec Inc.

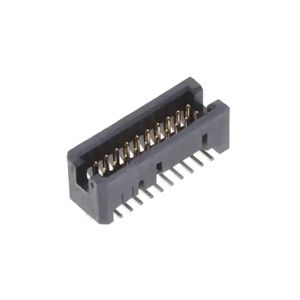

TFML-110-02-L-D-LC-TR
Harwin Inc.

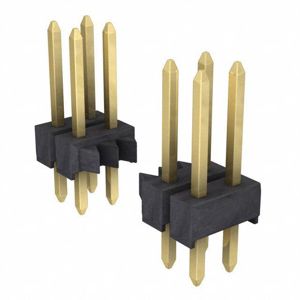

M20-9980545
Preci-Dip

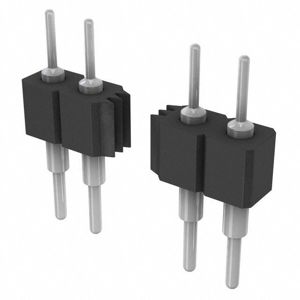

351-80-110-00-003101
Amphenol ICC (FCI)
78208-104
Würth Elektronik

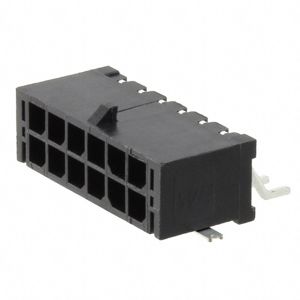

662012231722
Samtec Inc.

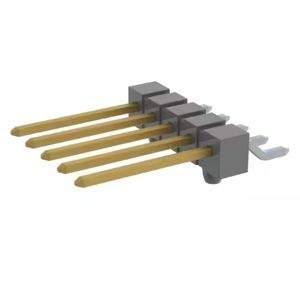

TSM-105-03-S-SH-A
JST Sales America Inc.

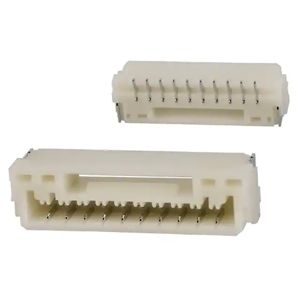

BM10B-GHS-TBT(LF)(SN)(N)
