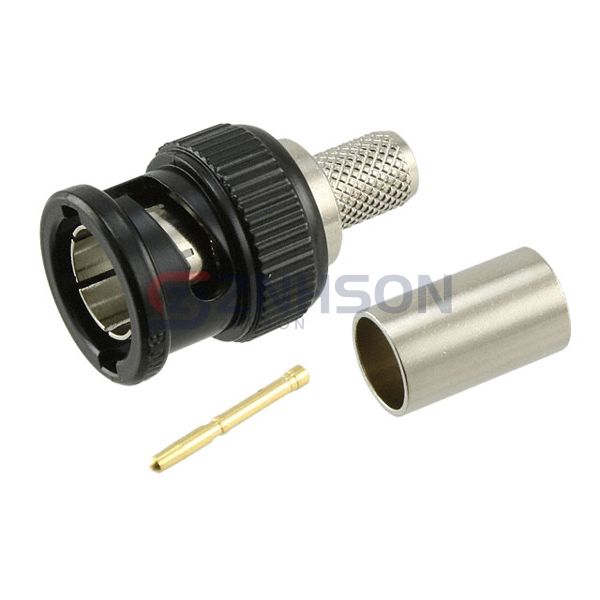

HBC1505A
Winchester Interconnect
Winchester Interconnect
CONN HDBNC PLUG STR 75 OHM CRIMP
$6.22
Available to order
Reference Price (USD)
500+
$3.67200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Winchester Interconnect HBC1505A exemplifies our commitment to quality in Coaxial Connectors (RF). These connectors feature innovative contact geometries that minimize passive intermodulation (PIM), crucial for modern multi-carrier wireless systems. With available configurations including push-on, threaded, and bayonet coupling styles, they accommodate diverse installation requirements. The product family offers exceptional environmental sealing (IP67 rated options) and flame-retardant material choices. Typical deployments include: Distributed antenna systems (DAS) Avionics test equipment Quantum computing research setups Cable television headend systems. The HBC1505A variant is specially designed for high-power handling (up to 500W average power) making it suitable for radar transmitters and scientific instrumentation.
Specifications
- Product Status: Active
- Connector Style: BNC, HD
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 75Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: Belden 1505A
- Fastening Type: Bayonet Lock
- Frequency - Max: 1 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Black
- Ingress Protection: Weatherproof
- Center Contact Material: Brass
