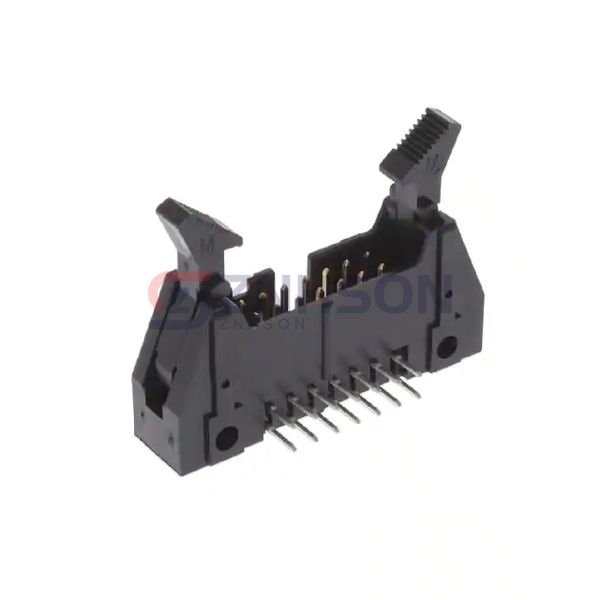

HIF3BA-14PA-2.54DS(63)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 14POS 2.54MM
$3.75
Available to order
Reference Price (USD)
1+
$3.75000
500+
$3.7125
1000+
$3.675
1500+
$3.6375
2000+
$3.6
2500+
$3.5625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF3BA-14PA-2.54DS(63) from Hirose Electric Co Ltd is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the HIF3BA-14PA-2.54DS(63) offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Hirose Electric Co Ltd for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 200V
Related Products
Sullins Connector Solutions
PBC03DBBN
Preci-Dip
802-V3-064-6B-002101
Samtec Inc.
TSW-109-08-G-S
Samtec Inc.
FTM-131-02-F-DV-S
Samtec Inc.
FTSH-108-03-F-DV-A
Molex
1053142204
Samtec Inc.
TSW-107-06-L-D
Mill-Max Manufacturing Corp.
435-90-254-00-160000
Samtec Inc.

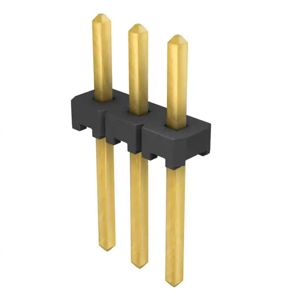

MTLW-103-07-G-S-197
