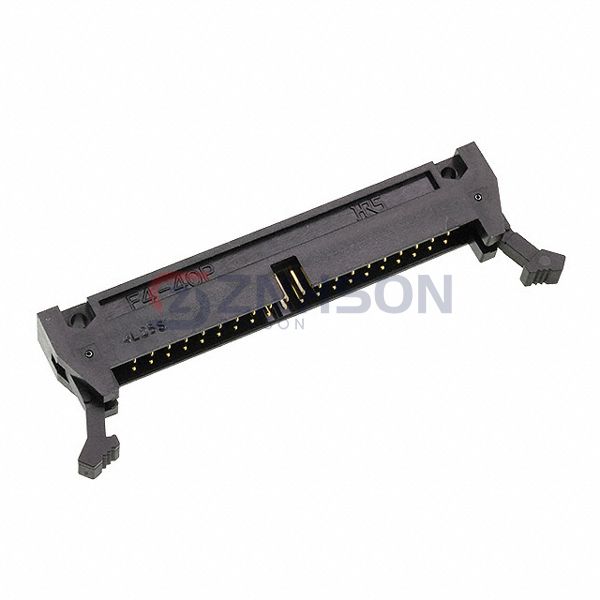

HIF4-40P-3.18DS
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 40POS 3.18MM
$13.68
Available to order
Reference Price (USD)
1+
$11.42000
20+
$10.38000
100+
$8.82300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the HIF4-40P-3.18DS rectangular connector header from Hirose Electric Co Ltd. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the HIF4-40P-3.18DS meets the highest industry standards. Hirose Electric Co Ltd provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.125" (3.18mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.125" (3.18mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.201" (5.10mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
