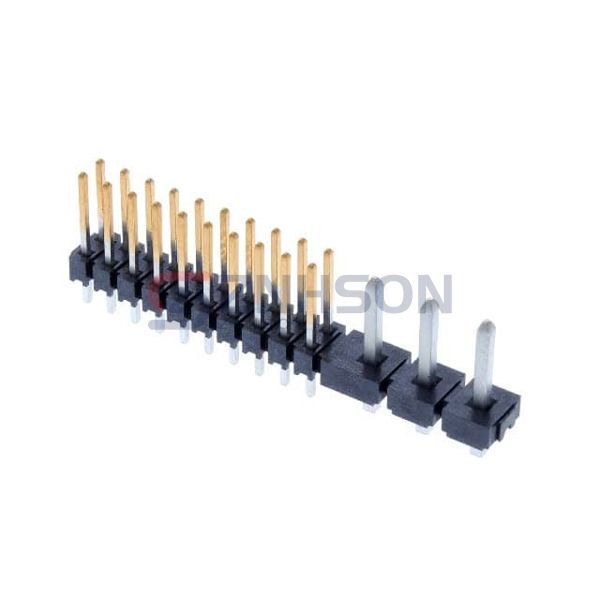

HPMC-110-03-L-D-03
Samtec Inc.
Samtec Inc.
CONN HDR .1" SIGNAL/PWR COMBO
$10.92
Available to order
Reference Price (USD)
1+
$10.92000
500+
$10.8108
1000+
$10.7016
1500+
$10.5924
2000+
$10.4832
2500+
$10.374
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HPMC-110-03-L-D-03 by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 23 (20 + 3 Power)
- Number of Rows: -
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.520" (13.21mm)
- Insulation Height: -
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Beryllium Copper, Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 850VAC, 1200VDC
Related Products
Samtec Inc.
IPL1-110-01-H-D-K
TE Connectivity AMP Connectors
1-2336678-7
TE Connectivity AMP Connectors
1-1744489-1
Samtec Inc.

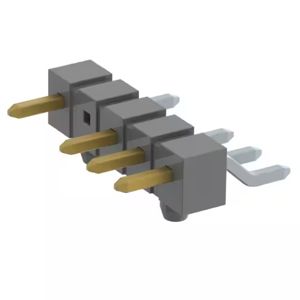

TSM-105-04-LM-SH-A-004
Molex

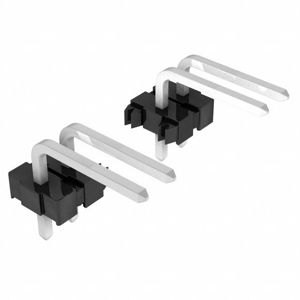

0026481072
Amphenol ICC (FCI)

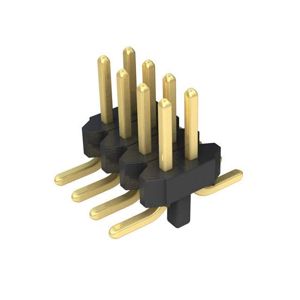

20021121-00008C1LF
Samtec Inc.

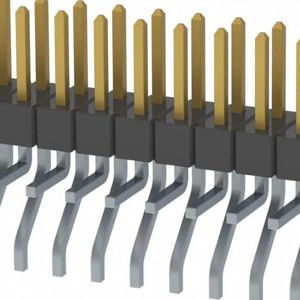

MMT-122-02-S-MT-P
Sullins Connector Solutions

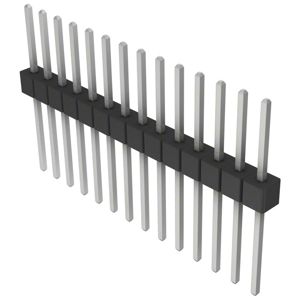

PEC14SFDN
