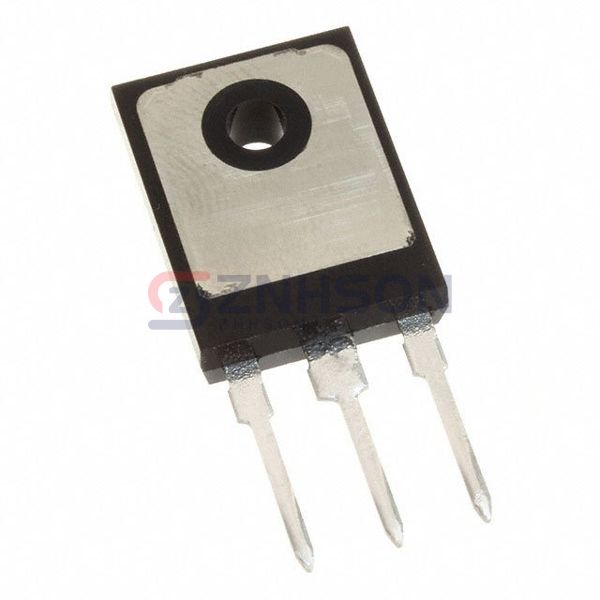

IGW30N60TPXKSA1
Infineon Technologies
Infineon Technologies
IGBT TRENCH/FS 600V 53A TO247-3
$2.86
Available to order
Reference Price (USD)
1+
$3.60000
10+
$3.25600
240+
$2.70963
720+
$2.34086
1,200+
$2.01026
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IGW30N60TPXKSA1 by Infineon Technologies is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Infineon Technologies's reputation for quality, the IGW30N60TPXKSA1 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Not For New Designs
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 53 A
- Current - Collector Pulsed (Icm): 90 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 30A
- Power - Max: 200 W
- Switching Energy: 710µJ (on), 420µJ (off)
- Input Type: Standard
- Gate Charge: 130 nC
- Td (on/off) @ 25°C: 15ns/179ns
- Test Condition: 400V, 30A, 10.5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3
