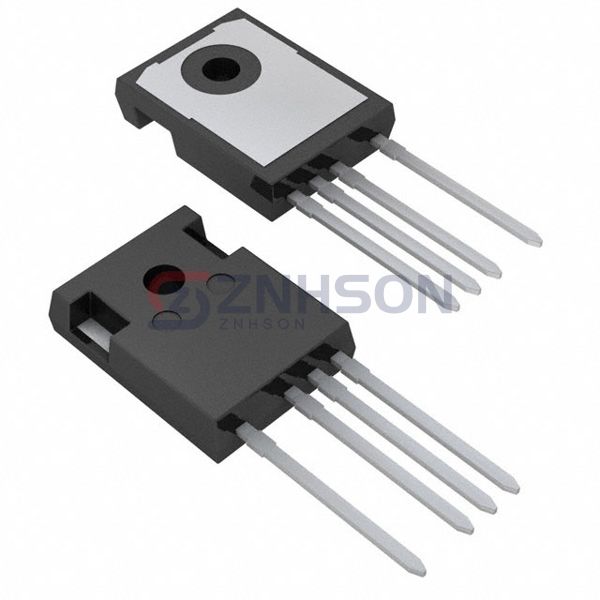

STGW80H65DFB-4
STMicroelectronics
STMicroelectronics
IGBT BIPO 650V 80A TO247
$5.72
Available to order
Reference Price (USD)
600+
$9.93250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGW80H65DFB-4 from STMicroelectronics is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose STGW80H65DFB-4 for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 80A
- Power - Max: 469 W
- Switching Energy: 2.1mJ (on), 1.5mJ (off)
- Input Type: Standard
- Gate Charge: 414 nC
- Td (on/off) @ 25°C: 84ns/280ns
- Test Condition: 400V, 80A, 10Ohm, 15V
- Reverse Recovery Time (trr): 85 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247-4
Related Products
STMicroelectronics
STGP14NC60KD
Alpha & Omega Semiconductor Inc.
AOT10B60D
Infineon Technologies
IKW40N65ES5XKSA1
Infineon Technologies
IKW75N65EL5XKSA1
onsemi
HGT1S10N120BNST
Fairchild Semiconductor
FGA25S125P-SN00337
Toshiba Semiconductor and Storage
GT30J121(Q)
onsemi
FGY40T120SMD
Infineon Technologies
IKW50N60DTPXKSA1

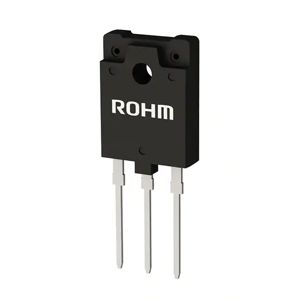

Rohm Semiconductor
