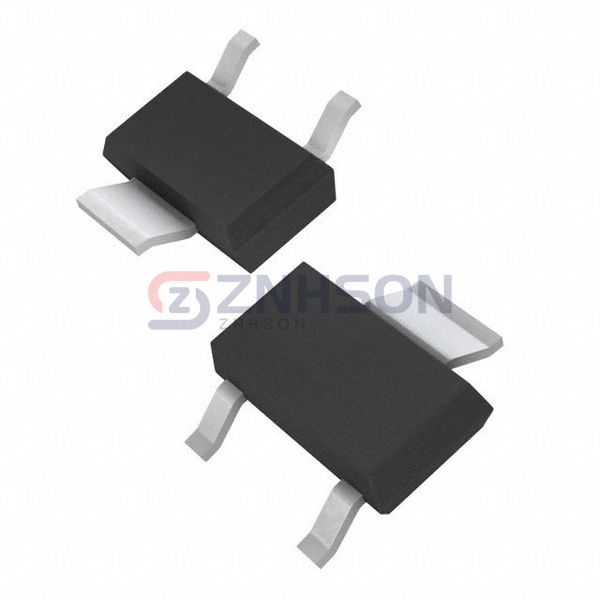

IPN60R360P7SATMA1
Infineon Technologies
Infineon Technologies
MOSFET N-CHANNEL 600V 9A SOT223
$1.32
Available to order
Reference Price (USD)
3,000+
$0.47090
6,000+
$0.44995
15,000+
$0.43498
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPN60R360P7SATMA1 single MOSFET from Infineon Technologies is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IPN60R360P7SATMA1 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 360mOhm @ 2.7A, 10V
- Vgs(th) (Max) @ Id: 4V @ 140µA
- Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 555 pF @ 400 V
- FET Feature: -
- Power Dissipation (Max): 7W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-SOT223
- Package / Case: TO-261-4, TO-261AA
