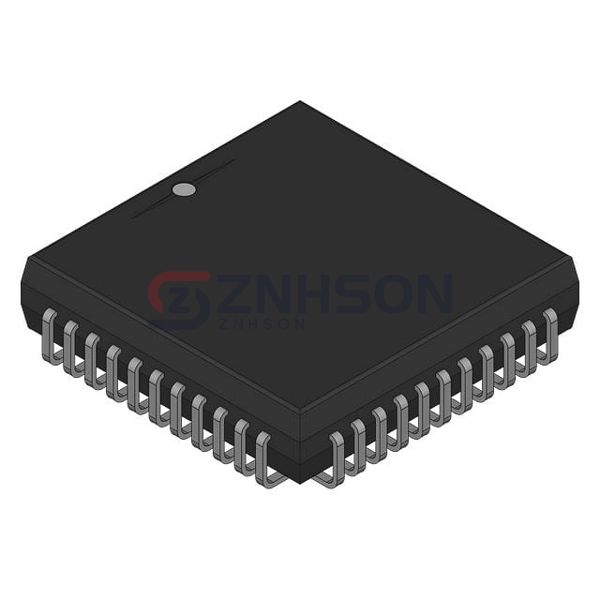

IR2136JTRPBF
Infineon Technologies
Infineon Technologies
IC GATE DRVR HALF-BRIDGE 44PLCC
$3.14
Available to order
Reference Price (USD)
500+
$3.73020
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's IR2136JTRPBF establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the IR2136JTRPBF reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: 3-Phase
- Number of Drivers: 6
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 10V ~ 20V
- Logic Voltage - VIL, VIH: 0.8V, 3V
- Current - Peak Output (Source, Sink): 200mA, 350mA
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): 600 V
- Rise / Fall Time (Typ): 125ns, 50ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 44-LCC (J-Lead), 32 Leads
- Supplier Device Package: 44-PLCC, 32 Leads (16.58x16.58)
