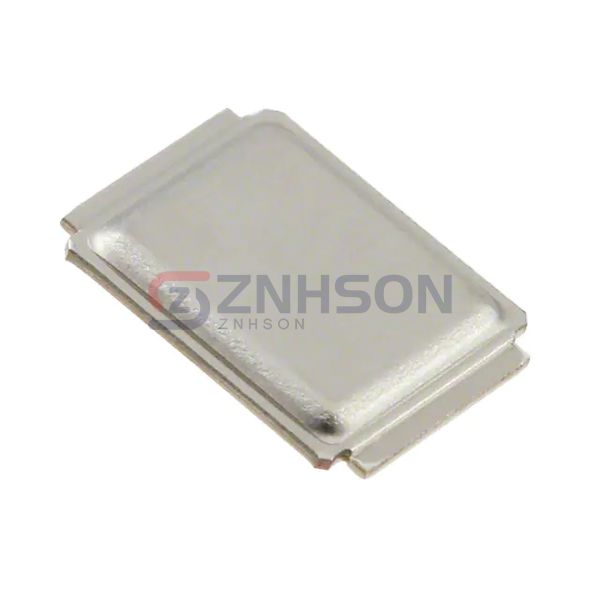

IRF7946TRPBF
Infineon Technologies
Infineon Technologies
MOSFET N-CH 40V 90A DIRECTFET MX
$2.96
Available to order
Reference Price (USD)
4,800+
$0.94380
9,600+
$0.92400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRF7946TRPBF by Infineon Technologies is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the IRF7946TRPBF is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 1.4mOhm @ 90A, 10V
- Vgs(th) (Max) @ Id: 3.9V @ 150µA
- Gate Charge (Qg) (Max) @ Vgs: 212 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6852 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 96W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DIRECTFET™ MX
- Package / Case: DirectFET™ Isometric MX
