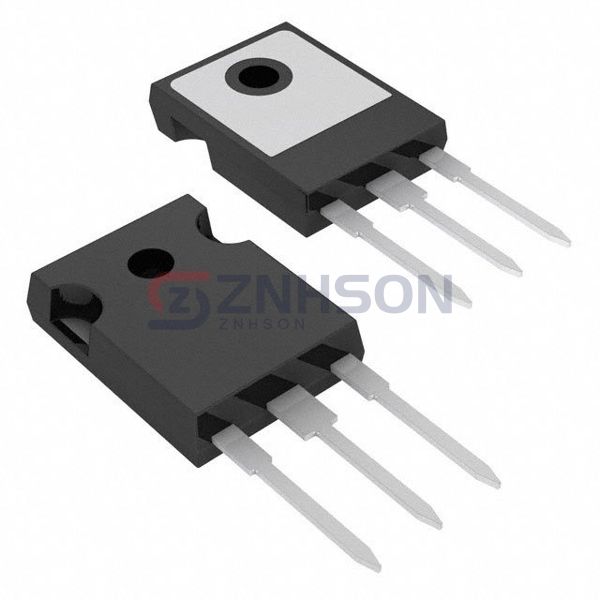

IRFP22N50APBF
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 500V 22A TO247-3
$5.73
Available to order
Reference Price (USD)
1+
$5.16000
25+
$4.17720
100+
$3.82030
500+
$3.12436
1,000+
$2.66041
2,500+
$2.53550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRFP22N50APBF single MOSFET from Vishay Siliconix is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IRFP22N50APBF is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 230mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 120 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 3450 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 277W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247AC
- Package / Case: TO-247-3
