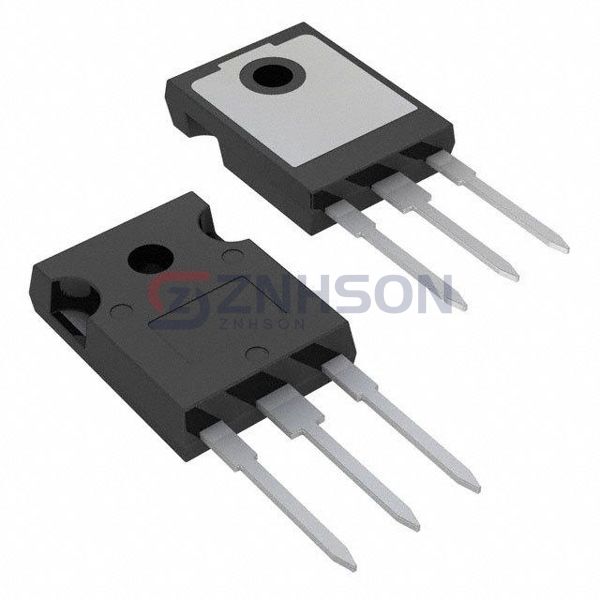

IRG4PH30KDPBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 20A 100W TO247AC
$3.31
Available to order
Reference Price (USD)
1+
$6.90000
25+
$5.85520
100+
$5.07450
500+
$4.31986
1,000+
$3.64325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG4PH30KDPBF by Infineon Technologies is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Infineon Technologies's reputation for quality, the IRG4PH30KDPBF is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 20 A
- Current - Collector Pulsed (Icm): 40 A
- Vce(on) (Max) @ Vge, Ic: 4.2V @ 15V, 10A
- Power - Max: 100 W
- Switching Energy: 950µJ (on), 1.15mJ (off)
- Input Type: Standard
- Gate Charge: 53 nC
- Td (on/off) @ 25°C: 39ns/220ns
- Test Condition: 800V, 10A, 23Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
