IRG4PH40UD2-EP
Infineon Technologies
Infineon Technologies

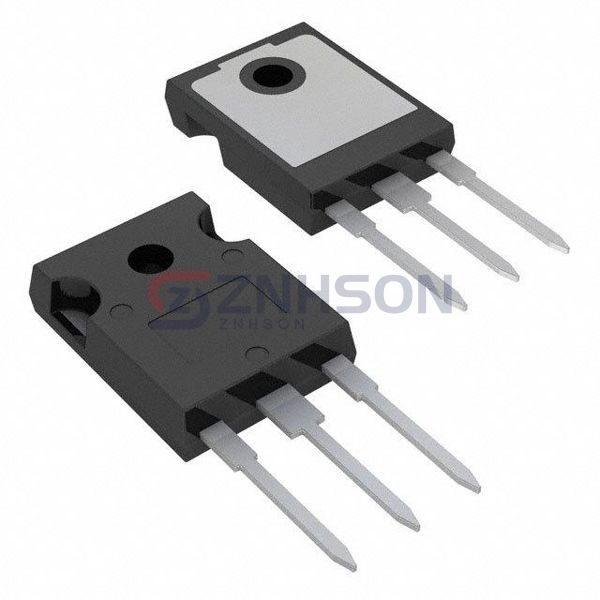

IGBT 1200V 41A TO247AD
$3.46
Available to order
Reference Price (USD)
400+
$4.63993
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG4PH40UD2-EP by Infineon Technologies is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Infineon Technologies's reputation for quality, the IRG4PH40UD2-EP is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 41 A
- Current - Collector Pulsed (Icm): 82 A
- Vce(on) (Max) @ Vge, Ic: 3.1V @ 15V, 21A
- Power - Max: 160 W
- Switching Energy: 1.95mJ (on), 1.71mJ (off)
- Input Type: Standard
- Gate Charge: 100 nC
- Td (on/off) @ 25°C: 22ns/100ns
- Test Condition: 800V, 21A, 10Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
